AFP  Aseptic Blow Fill Seal System For Plastic Container Parenterals Double Station

Small Volume Parenterals(SVP)

BFS product for Small Volume Parenteral (SVP) are highly used in eye, ear, nose care products and cosmetic serums. Comparing to glass ampoule, plastic material has much more advantages such as convenient to use, eliminate potential hazards in handling, safe and environmentally friendly disposal, shatterproof transportation and low manufacturing cost. Therefore, it is also suitable for IV solutions.

Get A Quote Send E-mail

1

Description

BFS product for Small Volume Parenteral (SVP) are highly used in eye, ear, nose care products and cosmetic serums. Comparing to glass ampoule, plastic material has much more advantages such as convenient to use, eliminate potential hazards in handling, safe and environmentally friendly disposal, shatterproof transportation and low manufacturing cost. Therefore, it is also suitable for IV solutions.



Double Station

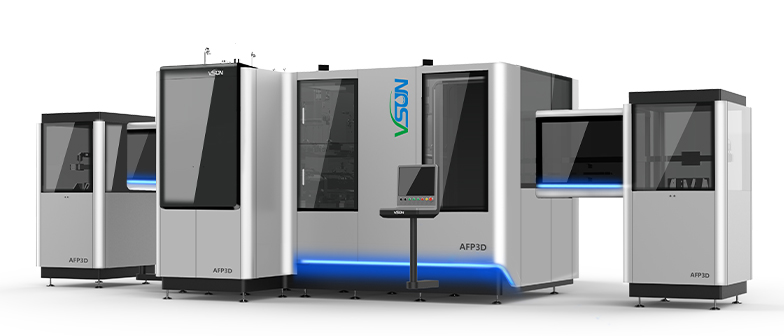

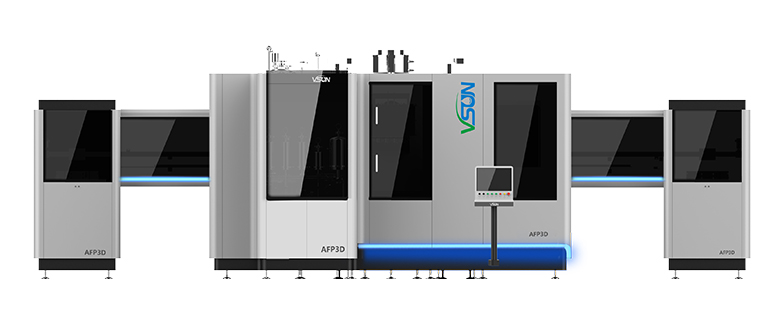

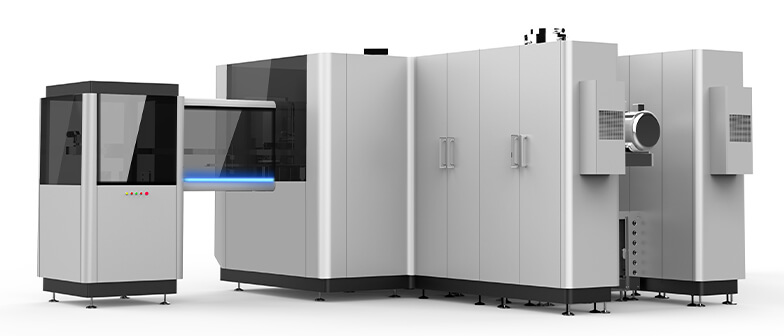

VSUN AFP aseptic blow fill seal system for plastic container parenterals double station uses two sets of molds and cutting system. This structure use the extruder waiting interval during mold forming and filling  process to work on an additional set of mould extrusion. VSUN double station model has a much higher production capacity and connect conveyer belt from both sides of the machine. Various capping design such as twist off, multidose, euro cap and more can be chose upon request.est.

Parameter

Model Specification Nos.of Extruding Head Center Distance of Extruding Head Qty. of Mould Distribution of Cavity Total number of cavity Recycle Time(Unit:s) Production Capacity(Unit:pcs/h)
AFP3D 0.4-1mL 3 145 2 2×3×(5+5) 60 14 18000
5-10mL 3 145 2 2×3×7 42 14 12600
5-20mL 3 145 2 2×3×6 36 14 9000
AFP4D 0.4-1mL 4 110 2 2×4×10 80 14 24000
1-3mL 4 110 2 2×4×8 64 14 19200
5-20mL 4 110 2 2×4×5 40 14 10000

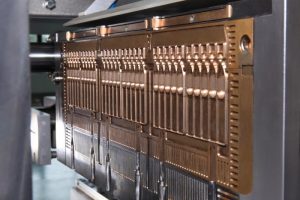

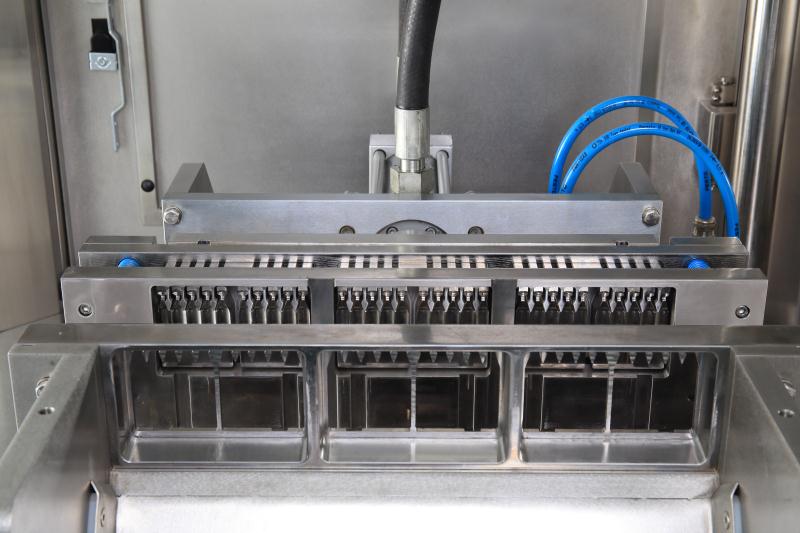

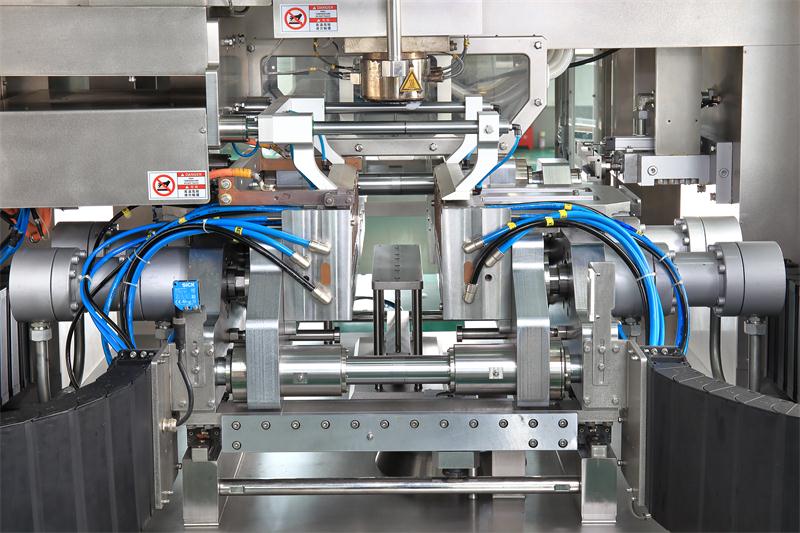

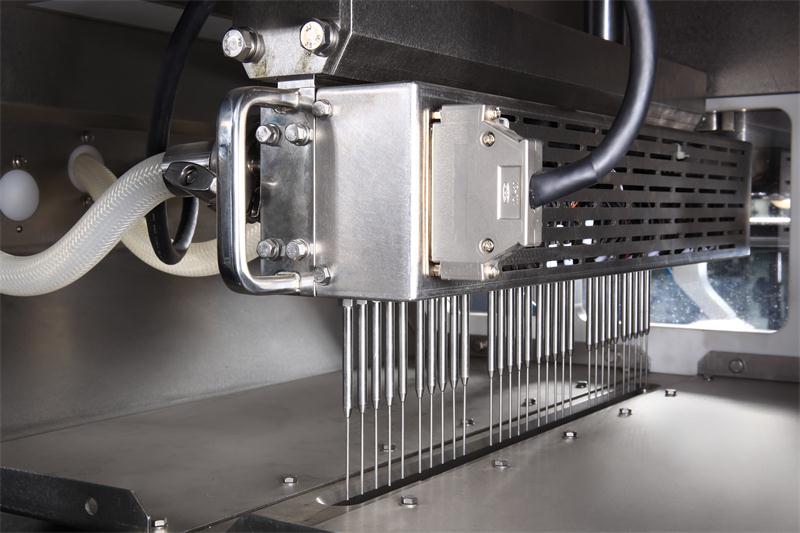

Internal structure

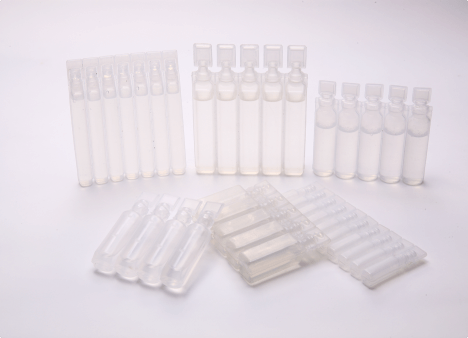

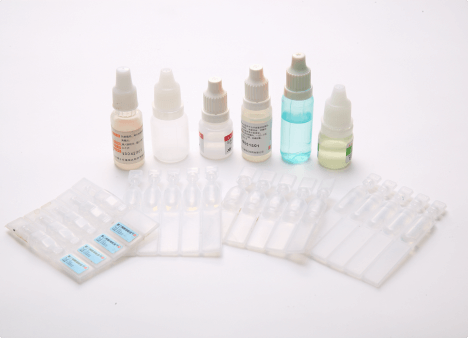

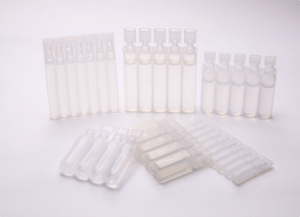

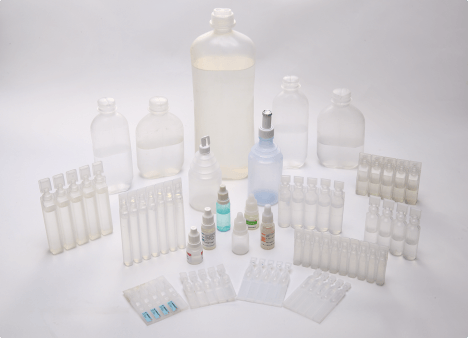

Product
